Ramvac Dental Vacuum Systems
You can feel confident knowing your utility equipment is monitored and protected around the clock at no charge, with Aeras Intel.
Ramvac Vacuums with Aeras Intel.
NOTIFICATIONS: you will get alerts and maintenance notifications so you can stay ahead of potential problems.
EASY SETUP: no wires to install, wifi to connect or apps to download. Equipment connects automatically through cellular and information is accessed through any web browser.
AUTOMATED SCHEDULING: automate daily activation and shutoff. Simply set it and forget it. When treatments run late, the equipment will sense activity and maintain power until the dentist is done.
COMPREHENSIVE DASHBOARD: get a bird’s-eye view of a practice’s entire back-office operation, including detailed technical outputs, configuration options and service records.
Are you an existing customer using a compressor with Aeras? Register for your warranty and our monitoring service with Aeras.
Videos
Literature
Ramvac Utility Brochure
See what the Ramvac compressors have to offer with all of their great features and benefits, like dry clean air and efficiency and durability.
Utility Catalog
See what the products the Ramvac utility line has to offer. Marvel at our compressors, vacuums, tanks, and more!
Ramvac Utility Sell Sheet
Quickly access key important benefits and information about our Ramvac compressors and vacuums.
Ramvac Utility Room Essentials Brochure
See what products you will need to have a fully functioning utility room with all of Ramvacs great utility products.
Manuals
Dry Vacuum Maintenance Chart - Models RV4, RV5, RV7, RV10 & RV12
Ramvac Dry Vacuums User Manual
Ramvac Vacuum RV4-12 Pre-Installation Guide
Ramvac Vacuum RV5-2 and RV7-2 Pre-Installation Guide
Ramvac Vacuum RV10-2 Pre-Installation Guide
Specifications

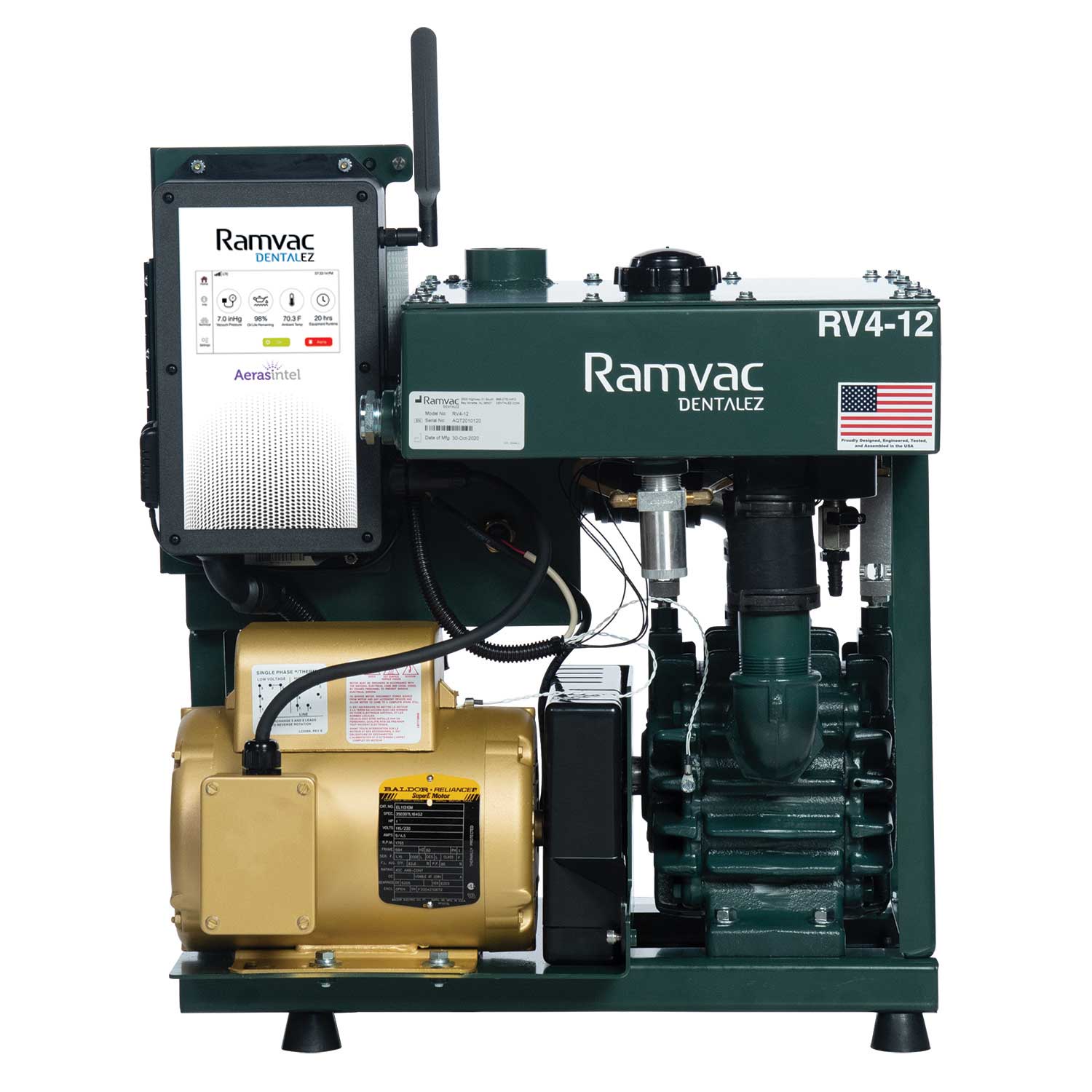

Model: RV4-12T
Description: Ramvac 4 Dry Vacuum System
Number of Users: 4
Breaker Size: 15 amp
Output Power: 1 hp (0.745kW)
Input Power: 115v or 230v, 1 ph 60 Hz
Max Amps: 9 @ 115v, 4.5 @ 230v
Weight (lbs) Pump Only: 200 lbs
Dimensions (pump only): 25" x 17" x 28"
Stacked Dimensions (tank & pump): 29" x 19" x 48"

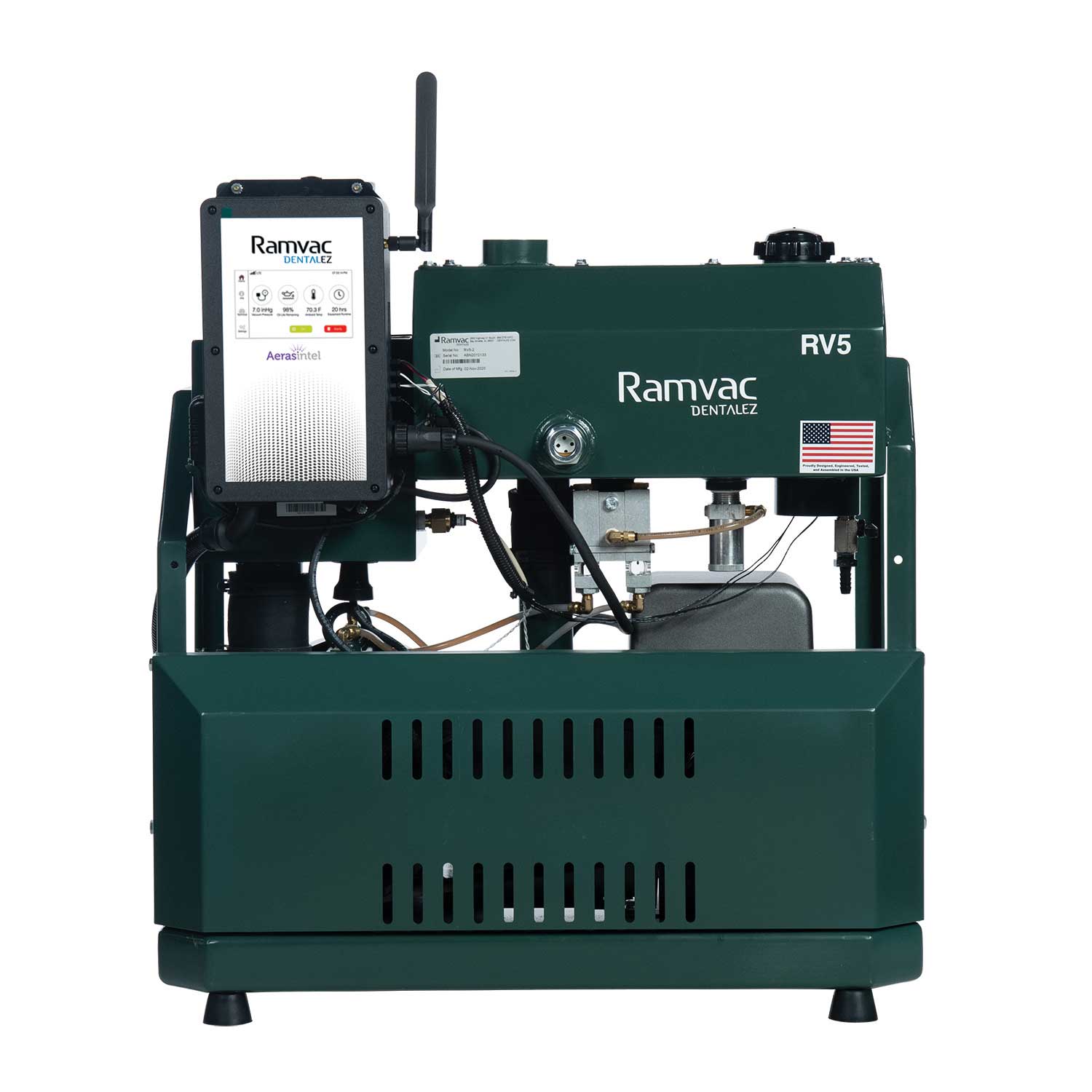

Model: RV5-2T
Description: Ramvac 5 Dry Vacuum System
Number of Users: 5
Breaker Size: 20 amp
Output Power: 3 hp (2.2kW)
Input Power: 230v, 1 ph 60 Hz
Max Amps: 16.0 @ 230v
Weight (lbs) Pump Only: 345 lbs
Dimensions (pump only): 26" x 19" x 31"
Stacked Dimensions (tank & pump): 33" x 21" x 59"
Model: RV5-23T
Description: Ramvac 5 Dry Vacuum System
Number of Users: 5
Breaker Size: 15 amp
Output Power: 3 hp (2.2kW)
Input Power: 230v, 3 ph 60 Hz
Max Amps: 8.4 @ 230v
Weight (lbs) Pump Only: 345 lbs
Dimensions (pump only): 26" x 19" x 31"
Stacked Dimensions (tank & pump): 33" x 21" x 59"

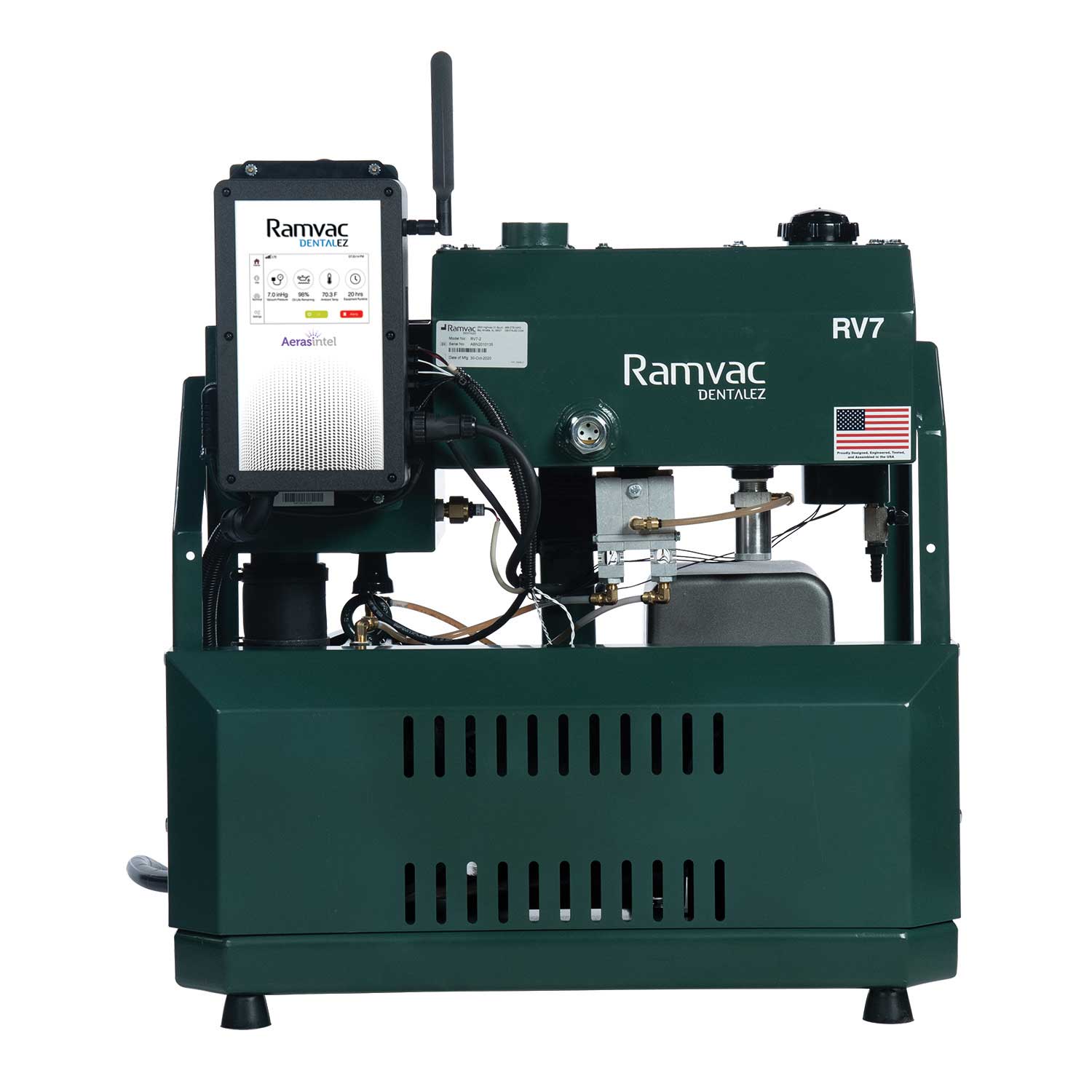

Model: RV7-2T
Description: Ramvac 7 Dry Vacuum System
Number of Users: 7
Breaker Size: 20 amp
Output Power: 3 hp (2.2kW)
Input Power: 230v, 1 ph 60 Hz
Max Amps: 16.0 @ 230v
Weight (lbs) Pump Only: 345 lbs
Dimensions (pump only): 26" x 19" x 31"
Stacked Dimensions (tank & pump): 33" x 21" x 59"
Model: RV7-23T
Description: Ramvac 7 Dry Vacuum System
Number of Users: 7
Breaker Size: 15 amp
Output Power: 3 hp (2.2kW)
Input Power: 230v, 3 ph 60 Hz
Max Amps: 8.4 @ 230v
Weight (lbs) Pump Only: 345 lbs
Dimensions (pump only): 26" x 19" x 31"
Stacked Dimensions (tank & pump): 33" x 21" x 59"

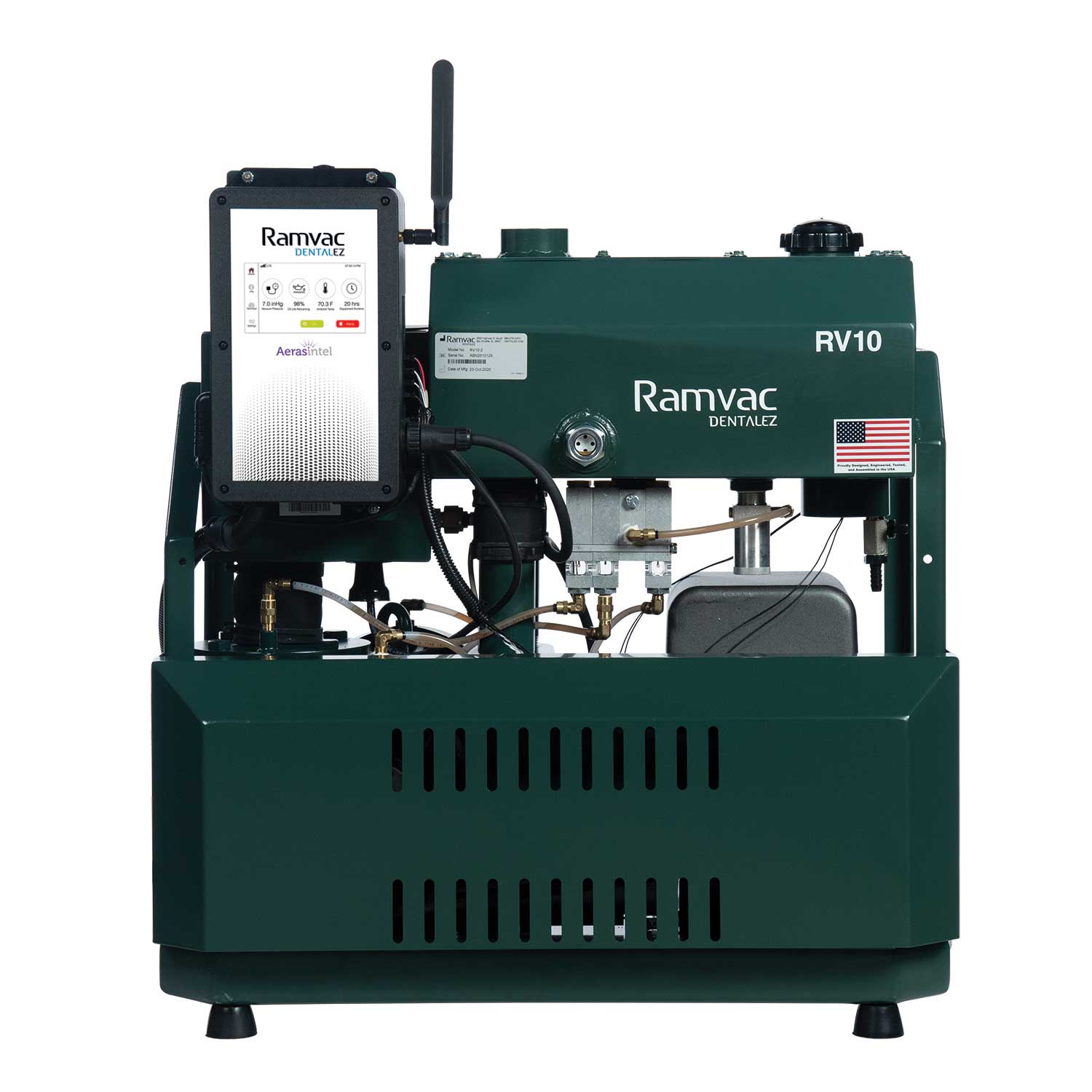

Model: RV10-2T
Description: Ramvac 10 Dry Vacuum System
Number of Users: 10
Breaker Size: 20 amp
Output Power: 3 hp (2.2kW)
Input Power: 230v, 1 ph 60 Hz
Max Amps: 16.0 @ 230v
Weight (lbs) Pump Only: 395 lbs
Dimensions (pump only): 26" x 22" x 31"
Stacked Dimensions (tank & pump): 33" x 22" x 59"
Model: RV10-23T
Description: Ramvac 10 Dry Vacuum System
Number of Users: 10
Breaker Size: 15 amp
Output Power: 3 hp (2.2kW)
Input Power: 230v, 3 ph 60 Hz
Max Amps: 8.4 @ 230v
Weight (lbs) Pump Only: 395 lbs
Dimensions (pump only): 26" x 22" x 31"
Stacked Dimensions (tank & pump): 33" x 22" x 59"
Model: RV12-23T
Description: Ramvac 12 Dry Vacuum System
Number of Users: 12
Breaker Size: 20 amp
Output Power: 5 hp (3.7kW)
Input Power: 230v, 3 ph 60 Hz
Max Amps: 13.2 @ 230v
Weight (lbs) Pump Only: 395 lbs
Dimensions (pump only): 26" x 22" x 31"
Stacked Dimensions (tank & pump): 33" x 22" x 71"
Model: RV12-43T
Description: Ramvac 12 Dry Vacuum System
Number of Users: 12
Breaker Size: 15 amp
Output Power: 5 hp (3.7kW)
Input Power: 460v, 3 ph 60 Hz
Max Amps: 6.6 @ 460v
Weight (lbs) Pump Only: 395 lbs
Dimensions (pump only): 26" x 22" x 31"
Stacked Dimensions (tank & pump): 33" x 22" x 71"
