Ramvac Dental Air Compressors
Ramvac reliability with Aeras Intel! Ramvac compressors provide clean, dry air in quiet, professional environments for their patients and staff. NOW AVAILABLE: the quieter, lighter and smaller C8 compressor.
We’ve upgraded the design of our C5 & C8 models to make a more efficient compressor, with the same ability to power your practice!
INTRODUCING THE REFINED C8:
Quieter. Lighter. Smaller.*
Quieter - Half as loud, eliminates the need for a sound shield.
Lighter - Designed for easier installs, the C8 is 135 lbs. lighter than the leading competitive option.
Smaller - Less space needed in utility room.
*Compared to previous models
NOTIFICATIONS: you will get alerts and maintenance notifications so you can stay ahead of potential problems.
EASY SETUP: no wires to install, wifi to connect or apps to download. Equipment connects automatically through cellular and information is accessed through any web browser.
AUTOMATED SCHEDULING: automate daily activation and shutoff. Simply set it and forget it. When treatments run late, the equipment will sense activity and maintain power until the dentist is done.

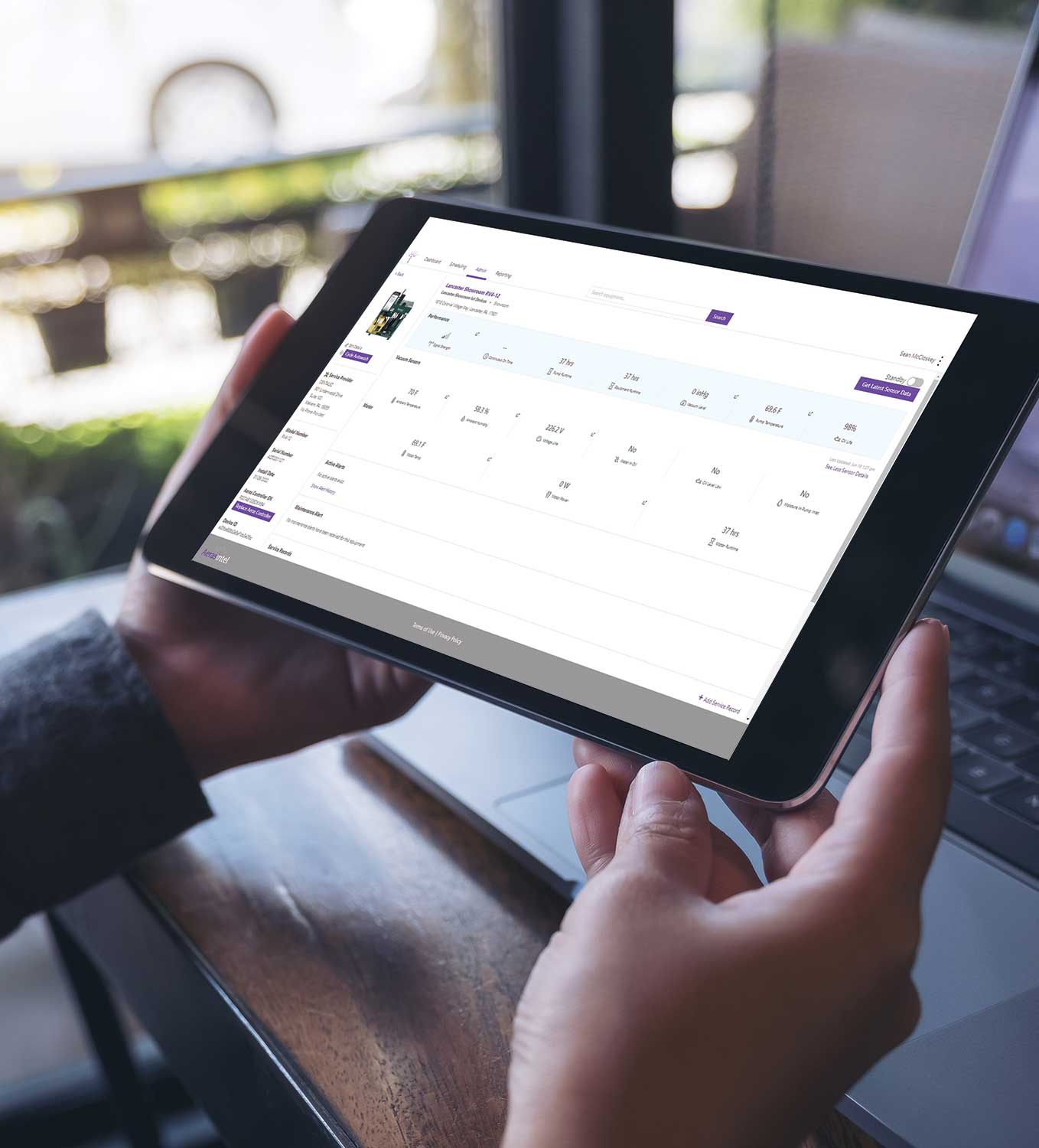

COMPREHENSIVE DASHBOARD: get a bird’s-eye view of a practice’s entire back-office operation, including detailed technical outputs, configuration options and service records.
Now available in larger sizes up to an 18 user with new and improved 100% duty cycle motor design that allows for continuous, consistent airflow. Larger size models: C8-2, C8-2SS, C12-2, C12-2SS, C18-2, and C18-2SS.
Are you an existing customer using a compressor with Aeras? Register for your warranty and our monitoring service with Aeras.
Videos
Literature

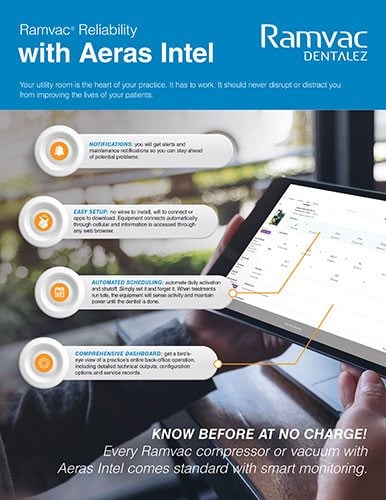

Ramvac Utility Brochure
See what the Ramvac compressors have to offer with all of their great features and benefits, like dry clean air and efficiency and durability.
Utility Catalog
See what the products the Ramvac utility line has to offer. Marvel at our compressors, vacuums, tanks, and more!
Ramvac Utility Sell Sheet
Quickly access key important benefits and information about our Ramvac compressors and vacuums.
Ramvac Compressor Sell Sheet
Quickly access key important benefits and information about our Ramvac compressors with Aeras Intel.
Ramvac Utility Room Essentials Brochure
See what products you will need to have a fully functioning utility room with all of Ramvacs great utility products.
Manuals
Ramvac Compressor User Manual - Dual Voltage Models C3, C5, C8, C12 & C18
Ramvac Compressors User Manual – Models C3, C4, C6, C7 & C11
Ramvac Compressors Preinstallation Guide – Dual Voltage Models C3, C5, C8, C12 & C18
Ramvac Compressors Preinstallation Guide – Models C3, C4, C6, C7 & C11
Air Intake Kit Installation Instructions
Compressor Maintenance Chart - Models C3, C4, C6, C7 & C11 (w/o SS)
Compressor Maintenance Chart - Models C3-12, C4-12, C8, C12 & C18 (w/ SS)
Specifications
Model: C3-12
Description: Ramvac 3 Compressor
Number of Users: 3
Number of Heads: 2
Sound Shield: 8658-016 (x2)
Voltage: 115v / 230v
Amps: 12 / 6.1
Breaker Size: 15 amp
Total HP: 1.0
Weight (lbs): 136
Dimensions: 30" x 21" x 26"
Dimensions w/Sound Shield: NA
Tank Size (Gallon): 12
Model: C3-12SS
Description: Ramvac 3 Compressor w/Sound Shield
Number of Users: 3
Number of Heads: 2
Sound Shield: Included
Voltage: 115v / 230v
Amps: 12 / 6.1
Breaker Size: 15 amp
Total HP: 1.0
Weight (lbs): 136
Dimensions: NA
Dimensions w/Sound Shield: 30" x 20" x 26"
Tank Size (Gallon): 12
Model: C5-12
Description: Ramvac 5 Compressor
Number of Users: 5
Number of Heads: 2
Sound Shield: Integrated
Voltage: 115v / 230v
Amps: 17.6 / 9
Breaker Size: 20 / 15 amp
Total HP: 1.5
Weight (lbs): 128
Dimensions: 30" x 21" x 26"
Dimensions w/Sound Shield: NA
Tank Size (Gallon): 12
Model: C8-2
Description: Ramvac 8 Compressor
Number of Users: 8
Number of Heads: 3
Sound Shield: Integrated
Voltage: 230v
Amps: 16
Breaker Size: 20 amp
Total HP: 2.25
Weight (lbs): 155
Dimensions: 30" x 21" x 27"
Dimensions w/Sound Shield: NA
Tank Size (Gallon): 12
Model: C12-2
Description: Ramvac 12 Compressor
Number of Users: 12
Number of Heads: 2
Sound Shield: 8625-022 (x2)
Voltage: 230v
Amps: 21
Breaker Size: 30 amp
Total HP: 4.0
Weight (lbs): 230
Dimensions: 35" x 25" x 31"
Dimensions w/Sound Shield: NA
Tank Size (Gallon): 20
Model: C12-2SS
Description: Ramvac 12 Compressor w/Sound Shield
Number of Users: 12
Number of Heads: 2
Sound Shield: Included
Voltage: 230v
Amps: 21
Breaker Size: 30 amp
Total HP: 4.0
Weight (lbs): 230
Dimensions: NA
Dimensions w/Sound Shield: 35" x 25" x 31"
Tank Size (Gallon): 20
Model: C18-2
Description: Ramvac 18 Compressor
Number of Users: 18
Number of Heads: 3
Sound Shield: 8625-022 (x3)
Voltage: 230v
Amps: 30.5
Breaker Size: 40 amp
Total HP: 6.0
Weight (lbs): 335
Dimensions: 41" x 29" x 32"
Dimensions w/Sound Shield: NA
Tank Size (Gallon): 30
Model: C18-2SS
Description: Ramvac 18 Compressor w/Sound Shield
Number of Users: 18
Number of Heads: 3
Sound Shield: Included
Voltage: 230v
Amps: 30.5
Breaker Size: 40 amp
Total HP: 6.0
Weight (lbs): 335
Dimensions: NA
Dimensions w/Sound Shield: 41" x 29" x 32"
Tank Size (Gallon): 30
